Obsolete models GWR-202/252/352

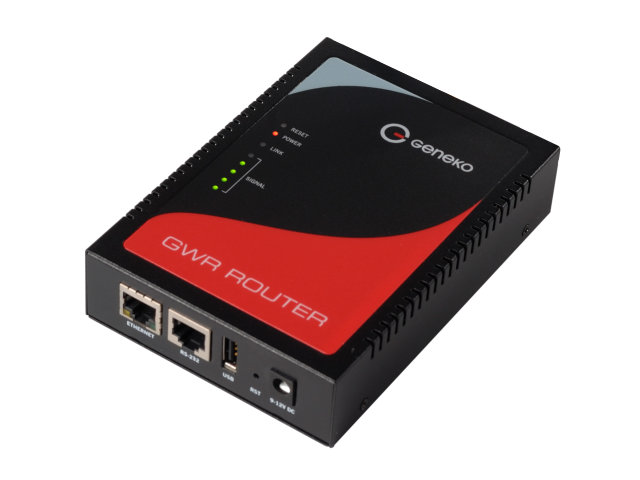

GWR-202, GWR-252 and GWR-352 are obsolete models of GWR 2G/3G Cellular Router Series.



RF characteristics

RF characteristics depend on the GWR router model.



  • GWR352-X model – HSPA+
    • UMTS/HSPA+: 900/2100 MHz or 850/1900/2100 MHz (Huawei modules, depending on the model)
    • GSM/GPRS/EDGE: 850/900/1800/1900 MHz (Huawei modules)



  • GWR252-X model – GPRS/EDGE
    • GSM/GPRS/EDGE Quad band: GSM 850/900/1800/1900 MHz



  • GWR202-X model – GPRS
    • GPRS Quad band: 850/900/1800/1900


-X at the end of Part Number denotes GSM module: C – Cinterion (Gemalto), H – Huawei



Transfer rate:

- UMTS/HSPA+ DL: 21 Mbps, UL: 5.76 Mbps

- UMTS DL: 384 Kbps, UL: 384 Kbps

- EDGE DL: 236.8 Kbps, UL: 236.8 Kbps

- GPRS DL: 85.6 Kbps, UL: 85.6 Kbps


Important note: All DL/UL speeds are given as speeds defined by standards. Actual speeds may vary and are not guaranteed.

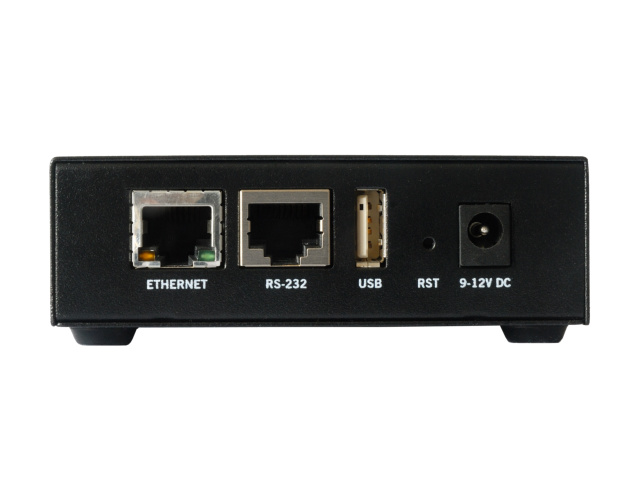

Interfaces and connectors



  • 1x embedded interface GPRS/EDGE/UMTS/HSPA+ depending on the router model

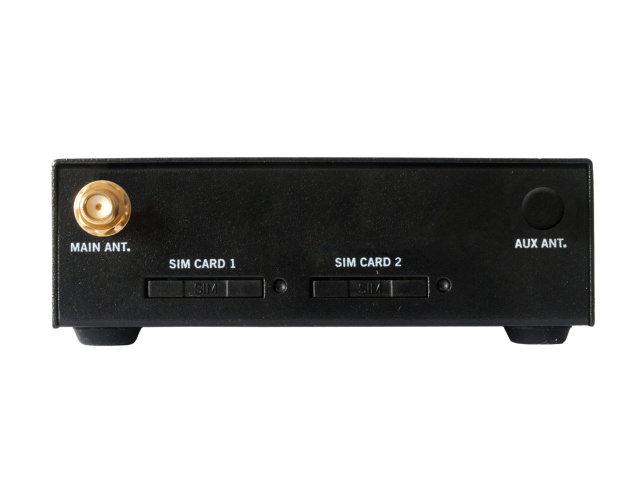

  • Dual SIM slots

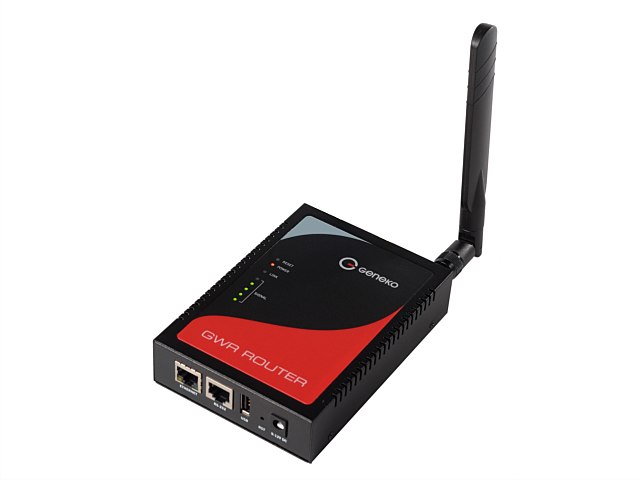

  • 1 x SMA female connector (50 Ω) for external antenna (one or two, depending on the router model)
  • 1x Ethernet interface 10/100 Base-T (LAN)
  • 1x Serial RS-232 interface
  • 1x USB Host 2.0 interface



Status LED



  • Ethernet activity/network traffic
  • Power on
  • GSM link activity
  • Signal quality
  • Reset



Power requirements



  • 9-12 VDC / 1000 mA



Environmental



  • Operating temperature: -10° C to +55° C (14° F to 131° F)
  • Storage temperature: -20° C to +85° C (-4° F to 185° F)
  • Relative humidity: 5% to 95% (non-condensing)



Housing and mounting options



  • Robust metal housing with optional DIN rail mounting kit



Dimensions



  • Size (W x D x H): 95 x 135 x 35 mm



Weight



  • Weight: 380 gr
